Drum Spill Containment PalletPallet Series1 / 4
Category LineInjection Moulded Pallet
Browse All →
GLZ-IM-003Injection Moulded PalletBrand New

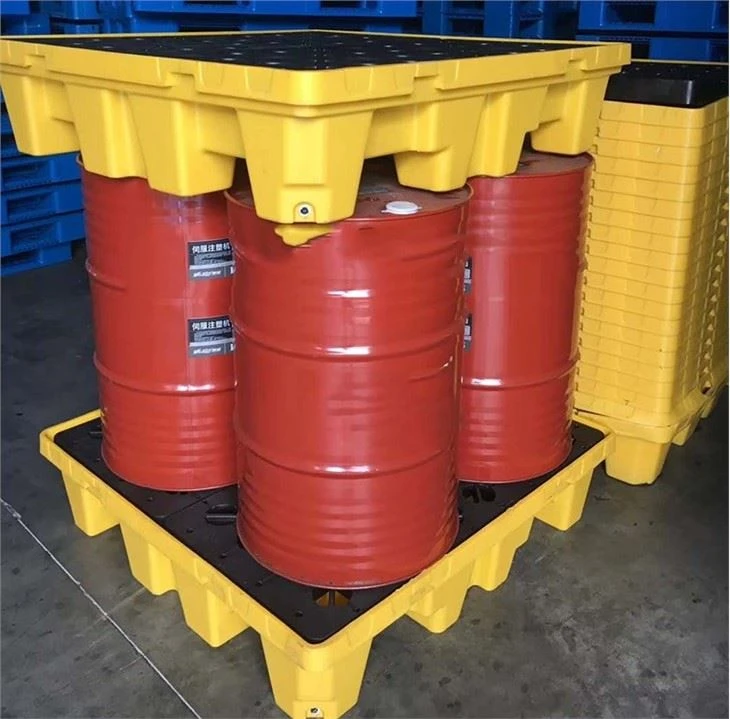

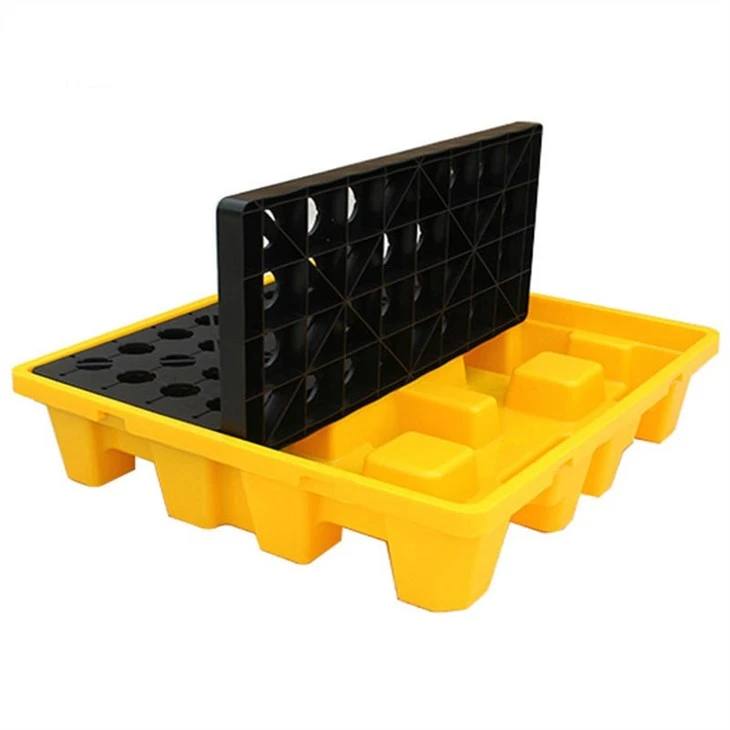

Drum Spill Containment Pallet

Drum spillcontainment pallet is a bunded secondary containment item that is designed to hold containers of oil and fuels, typically in either a 200-litre (44 imp gal; 53 US gal) drum or in an intermediate bulk container. It is called a 'secondary containment item' because it is designed to catch the leaks and spill of the container's contents which rest upon it.

Static Load4,000 kgISO 8611 verified
Dynamic Forklift1,500 kg4-way forklift / pallet jack
Racking Beam1,000 kgSelective AS/RS beam
Technical Specifications SheetISO / ASTM Compliant
Nominal Dimensions1300X1300X300
Polymer MaterialHDPE
Forklift Entry4-Way Forklift Entry
Surface ProfileVentilated Grid Deck
Base Construction3-Runner Chuanzi Base
Standard ColorIndustrial Blue / Safety Yellow

Procurement & Volume Quotation

Select order quantity to request an official company quotation or speak with engineering.

Factory Direct
WhatsApp Desk

Model Variations & Dimensional Matrix

Factory dimensional tolerances and model configurations for Drum Spill Containment Pallet.

Type,size(mm),Static load(kg)Daynamic load(kg)
4 drums,1300X1300X3004000kg,1300kg
4 drums1300X1300X1504000lg,
2 drums,1300X680X3002000kg800kg
2 drums1300X680X1502000kg,
1 drum670X670X150700kg,

Engineering & Structural Architecture

Drum spillcontainment pallet is a bunded secondary containment item that is designed to hold containers of oil and fuels, typically in either a 200-litre (44 imp gal; 53 US gal) drum or in an intermediate bulk container. It is called a 'secondary containment item' because it is designed to catch the leaks and spill of the container's contents which rest upon it.

01

Overview

Drum spillcontainment pallet is a bunded secondary containment item that is designed to hold containers of oil and fuels, typically in either a 200-litre (44 imp gal; 53 US gal) drum or in an intermediate bulk container. It is called a 'secondary containment item' because it is designed to catch the leaks and spill of the container's contents which rest upon it.

Specification sheets:

Pallet Features:

2. Four-way entry design is applicable to stackers, electric fork-lift truck, electric pallet trucks, etc.

3. Professional design, reasonable structure, huge loading and non-slip process .

4. Standard non-fumigation export plastic pallet, which can simplify export procedures.

5. Long service life 2-3 times that of wooden pallet, even 4-5 times of wooden pallet life when used carefully.

6. Can customize different colors according to your needs.

7.Be made of HDPE material, the pallet is non-toxic and non-polluting.

8. Plastic pallet is resistant to acid, alkali, moisture or corrosion, clean and hygienic, no static electricity, easy to clean, recyclable etc.

9.Anti-slip design is to prevent pallet slipping from the forks and each other during transit.

  • Double faced grid plastic pallet, which is used widely as the stacking pallet in warehousing, it cant be used on goods shelves and for stacking.
