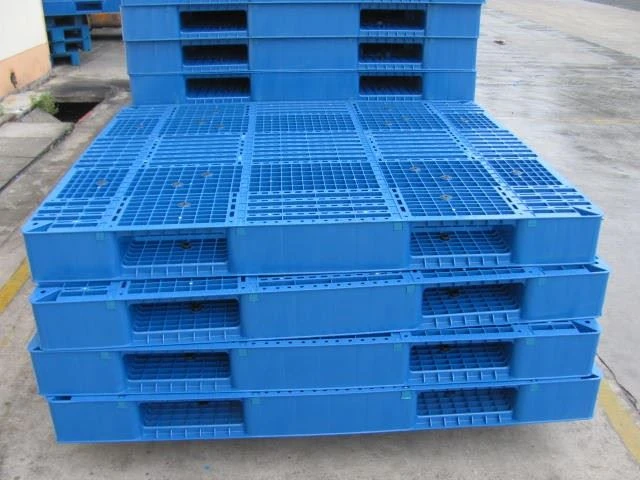

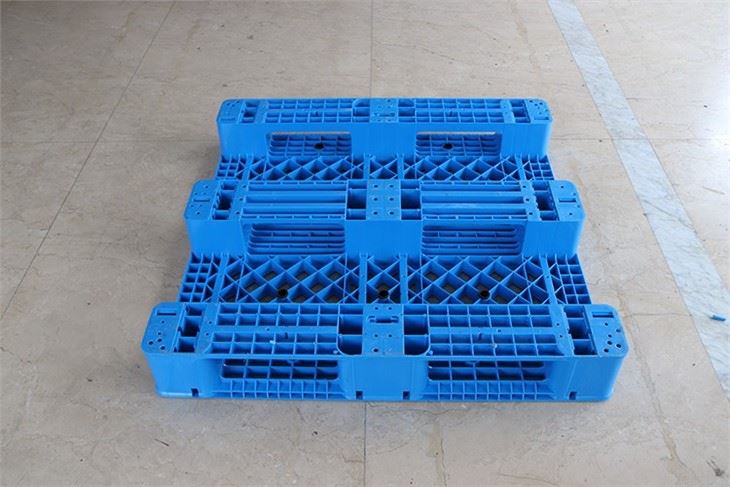

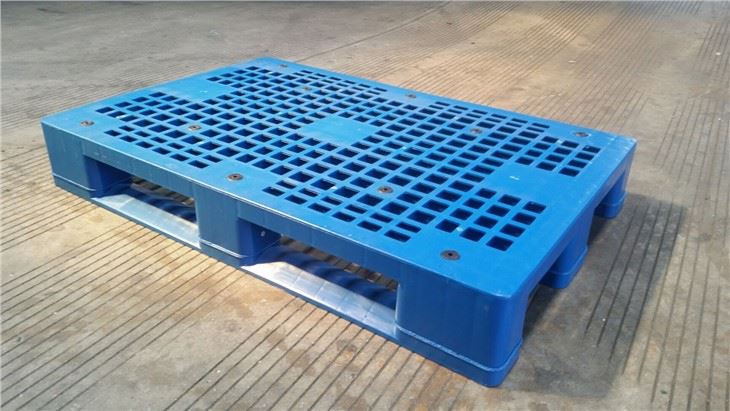

Racking Plastic Pallets

A rackable pallet is engineered to be able to hold a specified amount of weight in an open span racking system. an open span rack has a front bar and a back bar and nothing in between. Rackable pallets may also be used in an edge rack where the pallet is supported by both side edges.

Static Load4,000 kgISO 8611 verified

Dynamic Forklift1,500 kg4-way forklift / pallet jack

Racking Beam1,000 kgSelective AS/RS beam

Technical Specifications SheetISO / ASTM Compliant

Nominal Dimensions1200 x 1000 x 150 mm

Polymer Material100% Virgin HDPE

Forklift Entry4-Way Forklift Entry

Surface ProfileVentilated Grid Deck

Base Construction3-Runner Chuanzi Base

Standard ColorIndustrial Blue / Safety Yellow

Procurement & Volume Quotation

Select order quantity to request an official company quotation or speak with engineering.

Factory Direct

Units Qty

WhatsApp Desk

Model Variations & Dimensional Matrix

Factory dimensional tolerances and model configurations for Racking Plastic Pallets.

Material	HDPE OR VIRGIN HDPE
Available Size	1200x1000mm,1200x800mm,1100x1100mm,1200x1200mm,1200x1300mm
Color	Blue, black, green, red or custom
Steels	With or Without
Logo	Free silk screen logo printing
Lead time	7-15days once confirmed deposit
